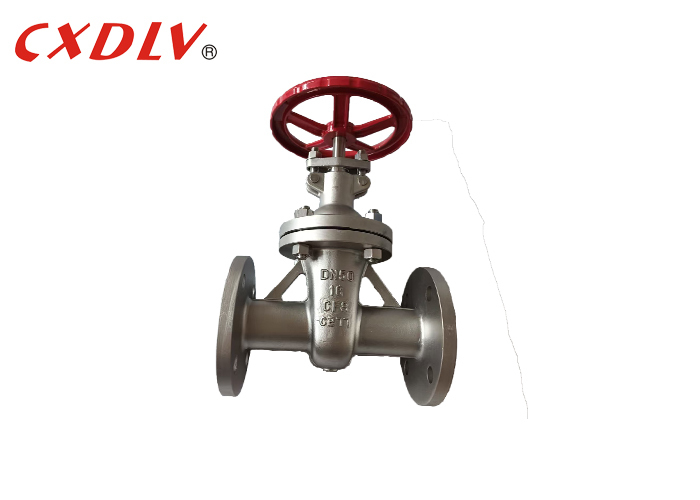

Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port

Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port

商品の詳細:

Place of Origin: China
ブランド名: CXDLV
証明: CE&ISO
Model Number: Z45W

お支払配送条件:

Minimum Order Quantity: 1pc
価格: 交渉可能
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
ベストプライス 連絡先

詳細情報

Body Material: CF8,CF8M,A216 WCB,CF3,CF3M Port: Full Port
Standard: ANSI/JIS/GB Size: 1/2"~10"
Medium: Water, Oil ,Gas Pressure: ANSI150/ANSI300/PN16/PN25
Wedge: CF8,CF8M,,CF3,CF3M

製品の説明

Stainless Steel Flanged​ Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port


 Specifications


Applicable Standards:
- Design and Manufacture according to ASME B16.34,API608

- Face to face according to ASME B16.10
- End Flanges according to ASME B16.5
- Inspection and test according to API 598

Size Range:
- 1/2"~10"

Pressure Rating:
-
PN16/PN25/PN40, ANSI150/300,JIS10K
Temperature Range:
- -20°C~185°C

Wedge:

- Flexible,

Construction:

- NRS(Non-Rising Stem)



 Application



Gate valves are used across a wide range of applications. They come in multiple sizes and configurations for use in general service on water, oil, or compressed gas. Specialized models are recommended for fire main shutoff and distribution service.

  • Good sealing performance, compact structure, saving installation space
  • Media flow direction is unrestricted
  • Small fluid resistance
  • Corrosion resistant, long service life
  • Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port 0



SIZE L(RF) d H H1 W W1
1 1/4" 140 32 300 / 180 /
1 1/2" 165 38 395 / 200 /



 Feature



1)Product features: meet the requirements of advanced standards at home and abroad, reliable seal, excellent performance, beautiful shape.

2)The sealing pair is advanced and reasonable, the sealing surface of gate and valve seat is surfacing welded with hard alloy of different hardness, the sealing is reliable, high hardness, wear-resisting, high temperature resistance, corrosion resistance, good abrasion resistance and long life.

3) valve stem by conditioning and surface nitriding treatment, has a good corrosion resistance, abrasion resistance and wear resistance. It can use a variety of piping flange standards and flange sealing surface form, to meet the needs of various projects and user requirements.
4)Scope of use: this product can be used in petroleum, chemical and other industries.



 Model Selection


Gate Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K PN16/PN40
  Valve Material 1) CF8/SCS13/SS304     2) CF8M/SCS14/SS316     3) CF3/SS304L          4) CF3M/SS316L
  Operated Type Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc.



Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port 1
