Smooth and Secure Connection with Flange Ends Handwheel Gate Valve for Linear Motion Flow Control in Industries
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | CXDLV |
| 証明: | CE,ISO,TS |
| モデル番号: | Z41W |
お支払配送条件:
| 最小注文数量: | 1pc |
|---|---|
| 価格: | FOBUS$27~US$875/pc |
| パッケージの詳細: | 異なるバルブの構造に応じた適切な合板ケース |
| 受渡し時間: | 5〜60営業日 |
| 支払条件: | T/T、L/C、D/A、D/P、Western Union、MoneyGram |
| 供給の能力: | 1か月あたり1000pcs |
|
詳細情報 |
|||
| 体: | CF8、CF8M、WCB ... | シート: | 金属シート |
|---|---|---|---|
| ポートサイズ: | 1 "〜20" | 繋がり: | フランジ |
| 標準: | ANSI、DIN、JIS、GB | プレッシャー: | PN10〜PN40 |
| 応用: | 水、油、ガス... | ||
製品の説明

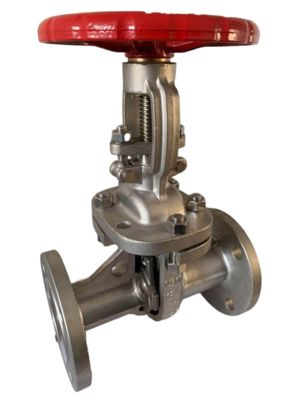

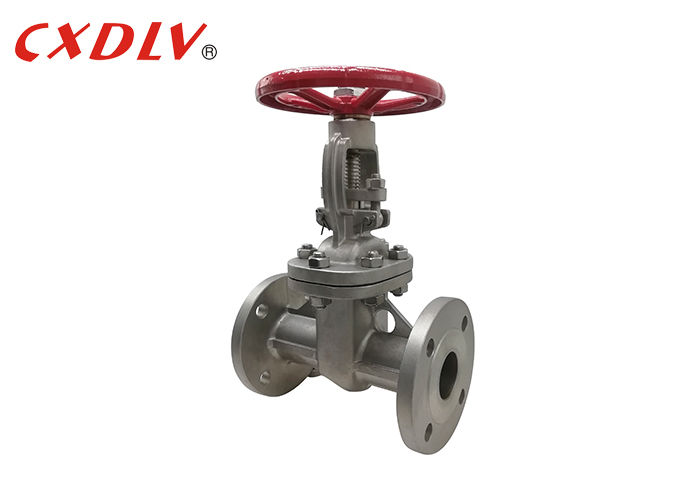

150LB Rising Stem Stainless Steel CF8M Gate Valve Flange Ends
Gate Valve Features
Gate Valve: is the most common type of valve that used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service,these valves are either in fully open or fully closed position. When the gate valve is fully open, the disc of a gate valve completely removed from the flow. Therefore virtually no resistance to flow. Due to this very little pressure drops when fluid passes through a gate valve.
-
Easy to open and close
-
Small fluid resistance,sealing surface by medium erosion and erosion
-
Medium flow is not restricted, no turbulence, no pressure reduction
-
The sealing surface is easy to be eroded and scraped, difficult for maintenance
-
Larger structure requires more space and long-time opening opening
Gate Valve Dimension
(Unit:mm)
| Nominal Diameter | d | D | L | |
| Inch | mm | |||
| 2" | 50 | 51 | 152 | 178 |
| 3" | 80 | 76 | 190 | 203 |
| 4" | 100 | 102 | 229 | 229 |
Packing&Delivery
Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details:7~40days bosed on you order quantity after deposite.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
