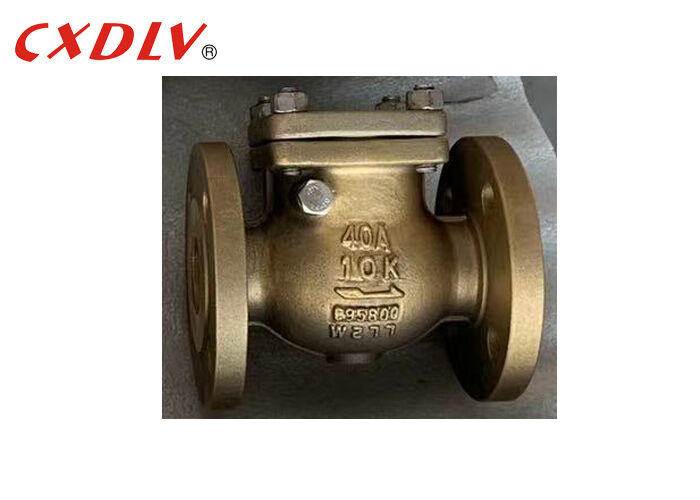

Aluminum Bronze C95800 Flange Ends One Way Swing Check Valve JIS10K For Marine
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | CXDLV |
| 証明: | CE,ISO |
| モデル番号: | H44W-10K |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | FOBUS$24~US$1140/pc |
| パッケージの詳細: | 異なるバルブの構造に応じた適切な合板ケース |
| 受渡し時間: | 5〜35勤務日は数量に依存します |
| 支払条件: | T/T、L/C、D/A、D/P、ウェスタン・ユニオン、MoneyGram |
| 供給の能力: | 1か月あたり1000pcs |
|
詳細情報 |
|||
| 体: | CF8、CF8M、WCB、CF3、CF3M、C95800 | 接続口径: | "~10" |
|---|---|---|---|
| 繋がり: | フランジエンド | 標準: | ANSI、DIN、JIS、GB |
| プレッシャー: | PN16、JIS10K、JIS5K、DIN PN16、ANSI150LB | アプリケーション: | 水,石油,ガス |
| ハイライト: | Aluminum Bronze JIS10K check valve,Flanged swing check valve marine,C95800 one way check valve |
||
製品の説明
Aluminum Bronze C95800 Flange Ends One Way Swing Check Valve JIS10K For Marine
Check Valve Overview
Flange Swing Check Valve is a valve that allows fluids to flow through in on direction only. It also known as non-return valve or one way valve. An arrow directional is marked on valve body to show where the fluids flow to.
The valves are two-port flange end valves,meaning they have two openings in the body,one for fluid to enter (inlet port) and the other for fluid to leave (outlet port). The fluids will flow from inlet port,pushing the disc to swing up and flow through the valve passage. If there are any back flow from outlet port,it will push the disc towards inlet port and block the back flow.
C95800 Overview
Nickel-aluminum Bronze
Similar or Equivalent Specification
Check Valve Feature
Flange Swing Check Valve
Applicable Standards:
-Design and Manufacturing:ANSI B16.34
-Flange Connection: JIS10K,DINPN16,ANSI150LB
-Test and Inspection:API598
-Face to face dimension:ASME B16.5
Size Range:
DN25~DN300
Pressure Rating:
PN16~PN40
Temperature Range:
-20℃~325℃
Packing&Delivery
Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details:7~45days based on you order quantity after deposite.
FAQ
Q:Are you trading company or manufacturer?
A:We are a factory
Q:How long is your delivery time?
A:7~45 days based on the quantity of order
Q:Do you provide samples?Is it free or extra?
A:Yes, we could offer the sample for free
Q:What is your terms of payment?
A: Total amount less than US$1000, request 100% payment in advance.
When more than US$1000, 30% payment as deposit, balance based on Packing list and pictures before shipment
