Convenient Monitoring Pneumatic Actuated Ball Valve for Seamless Integration with Limit Switch Box
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | CXDLV |
| 証明: | CE&ISO |
| モデル番号: | Q611F |
お支払配送条件:
| 最小注文数量: | 1pc |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 異なるバルブ構造に応じた適切な合板ケース |
| 受渡し時間: | 5〜25営業日 |
| 支払条件: | T/T、PayPal、Western Union、D/A、L/C、D/P、MoneyGram |
| 供給の能力: | 500pcs/mon |
|
詳細情報 |
|||
| 体材: | CF8、CF8M、WCB、CF3、CF3M | シートマテリアル: | PTFE |
|---|---|---|---|
| アクチュエータ: | 複動式 | 標準: | GB,ANSI,JIS,DIN |
| サイズ: | 1/2 "〜8" | 中くらい: | 水オイルガス |
製品の説明

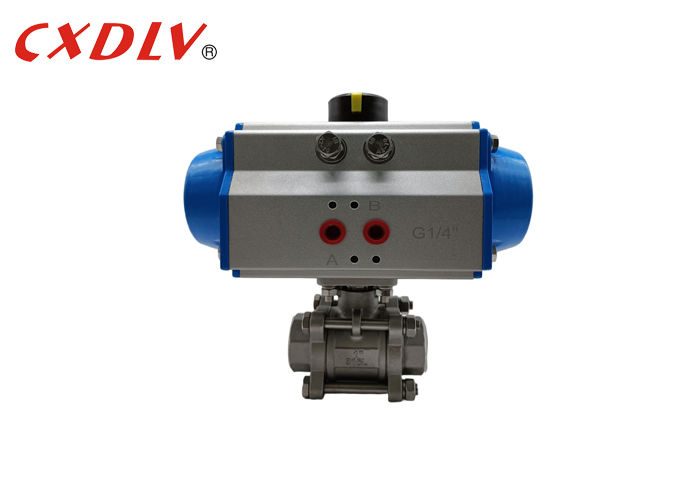

PN16 Pneumatic Actuated Ball Valve Double Acting Piston Double Flange Ends
Specifications
- Rack and pinion design rotary quarter turn pneumatic actuator
- Double Acting or Spring Return Version
- ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
- Suitable for indoor and outdoor application
- Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
- Aluminium alloy housing with nickel plated pinion
- Travel angle 90° with travel stop adjustment of ± 5℃
- Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃
Advantage
1. Type Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
2. Size & Connections 6mm (1/4″) to 100mm (4″) BSP Female (NPT, BSPT on request)
3. Duty Air : Inert Gas : Oil : Process : Steam : Water
4. Materials Stainless Steel Body, Ball & Stem : RPTFE Seat
Technical Data
Double Acting Pneumatic Actuator Ordering No.
| Model No | Torque(6Bar) | |
| Open | Close | |
| ACT 050S | 13.2Nm | 6.7Nm |
| ACT 063S | 24.1Nm | 11.1Nm |
| ACT 075S | 47.7Nm | 22.1Nm |
| ACT 090S | 73.1Nm | 36.7Nm |
| ACT 100S | 109Nm | 50.7Nm |
| ACT 115S | 176Nm | 82Nm |
| ACT 125S | 227Nm | 105Nm |
| ACT 145S | 357Nm | 165Nm |
| ACT 160S | 456Nm | 224Nm |
| ACT 190S | 871Nm | 379Nm |
| ACT 210S | 1000Nm | 521Nm |
| ACT 240S | 1423Nm | 721Nm |
| ACT 270S | 2345Nm | 1060Nm |
| ACT 300S | 2956Nm | 1460Nm |
| ACT 350S | 4247Nm | 2346Nm |
| ACT 400S | 6559Nm | 2624Nm |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Model Selection
3PC Thread Pneumatic Ball Valve
| Product Name | 3PC Thread Ball Valve | |||
| Pressure | 1000WOG | |||
| Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB | |
| Connection | BSP/BSPT/NPT | |||
